It’s heavy duty construction the most striking advantage of a BERINGER reducer.
Header and ram plate are welded constructions made of hollow sections and UPN-IPN beams. The body is made of convex sheets to achieve highest stability at lowest empty weight. The convex body construction ensures perfect emptying. The silent hydraulic unit is installed safely in the header. It is installed on silent blocks, the oil drainage is installed on the outside, and the oil indicator can be seen from outside. Generally our power units are equipped with an oil-deficiency switch and switch off automatically in case of oil leakage.
Reducer x4
Mobile compactor for chain-loader systems according to DIN 30 730
Smoothline construction, conical shape;
With silence pump;
Feed opening 835 x 1500 mm;
SPS control;
With radial sheets (left & right);
Primed and coated in RAL colour of your choice;
Standard equipment
Lid installed front sides
80 % Fill level signal
Technical Data
Actuating power: 5,5 kW
Fuse protection: 16 A delay
Power supply: 400 V / 50 Hz.
Hopper height: 1650 mm
Upper feed opening: 1200 x 1500 mm
Lower feed opening: 835 x 1500 mm
Ram capacity / stroke: 1,25 cbm
Plunger stroke: 1130 mm
Retraction depth: 280 mm
Compaction force: 280 kN / m²
Cycle time: 33 sec.
Hydraulic oil: 35 ltrs.
Control voltage: 230 V
Reducer x4
Mobile compactor for chain-loader systems according to DIN 30 730
Smoothline construction, conical shape;
With silence pump;
Feed opening 835 x 1500 mm;
SPS control;
With radial sheets (left & right);
Primed and coated in RAL colour of your choice;
Standard equipment
Lid installed front sides
80 % Fill level signal
Technical Data
Actuating power: 5,5 kW
Fuse protection: 16 A delay
Power supply: 400 V / 50 Hz.
Hopper height: 1650 mm
Upper feed opening: 1200 x 1500 mm
Lower feed opening: 835 x 1500 mm
Ram capacity / stroke: 1,25 cbm
Plunger stroke: 1130 mm
Retraction depth: 280 mm
Compaction force: 280 kN / m²
Cycle time: 33 sec.
Hydraulic oil: 35 ltrs.
Control voltage: 230 V
Quality marks
1. Safety lock with threaded ratchet for safety door opening
2. control panels safely installed
3. robust electrics
4. oil level indicator
- option lid seal all around / rear flap waterproof / seal maintenance door to avoid odour
- hydraulic cylinder with pivot bearings
- oil deficiency switch
- compact unit (no hose pipes of valve-pump connection)
- lid lockable
- transformer control (no zero conductor necessary)
- bottom (header) made of wear-resistant steel 450 HBW
- convex side panels
- wiper at drawer made of PE, dynamically supported
- gas springs for led
- modular system (for easy spare parts handling)
It’s heavy duty construction the most striking advantage of a BERINGER reducer.
Header and ram plate are welded constructions made of hollow sections and UPN-IPN beams. The body is made of convex sheets to achieve highest stability at lowest empty weight. The convex body construction ensures perfect emptying. The silent hydraulic unit is installed safely in the header. It is installed on silent blocks, the oil drainage is installed on the outside, and the oil indicator can be seen from outside. Generally our power units are equipped with an oil-deficiency switch and switch off automatically in case of oil leakage.
Put lid in upright position for easy filling
gas springs are installed insides
filling height is 1310 mm.
Mobile compactor for chain loader systems,
Smoothline construction, conical shape,
Control panels safely installed on left and right side,
“wet waste” fully liquid proof,
Header and body welded in one piece,
Feed opening 1400 x 1000 mm,
the compactor is especially designed for compacting of waste with high liquid quote (e.g. kitchen waste, fruits and vegetables)
Primed and coated in RAL colour of your choice.
Standard equipment:
- lid installed front sides
- automatic phase inverter relay
- cleanout door liquid proof
- 80 % fill level signal
Technical Data
Actuating power: 5,5 kW
Fuse protection: 16 A delay
Power supply: 400 V / 50 Hz.
Hopper height: 1480 mm
Feed opening: 1400 x 1000 mm
Plunger stroke: 1130 mm
Compaction force: 280 kN / m²
Compactor for hook-lift systems manufactured according to DIN 30 730
Smoothline construction conical shape;
With silent pump
Feed opening 1000 x 18600 mm in front of plunger;
SPS control
With radial sheets (left & right)
Primed and coated in RAL colour of your choice
Standard equipment:
Lid installed front sides
Pick-up system in the rear with 2 rollers front sides;
Pick up system fold down and hinged at front side;
With paper rack;
With steel wiper in front of ram plate;
80 % fill level signal
1. safety lock at cleanout door
2. control panel – safely installed
3. hook at backside for maneuvering purpose
4. foldable hook at front side for transport purpose
5. robust electrics
6. paper rack
- oil-level indicator (outside) with drainage cock
- option lid seal all around / rear flap waterproof / seal maintenance door to avoid odour
- hydraulic cylinder with pivot bearings
- oil deficiency switch
- compact unit (no hose pipes of valve-pump connection)
- lid lockable
- transformer control (no zero conductor necessary)
- bottom (header) made of wear-resistant steel 450 HBW
- wiper at drawer made of PE dynamically supported
- gas springs for led
- modular system (for easy spare parts handling)
Compactor for hook-lift systems according to DIN 30 730
Smoothline construction conical shape;
With silent pump
Feed opening 1480 x 2090 mm in front of plunger;
Feed opening: 1000 x 1860 mm
SPS control;
With radial sheets (left & right);
Primed and coated in RAL colour of your choice
Standard equipment:
Pick-up system in the rear with 2 rollers frontsides;
Pick up system fold down and hinged at front side;
With paper rack;
With steel wiper in front of ram plate;
80 % fill level signal
1. safety lock at cleanout door
2. control panel – safely installed
3. hook at backside for maneuvering purpose
4. foldable hook at front side for transport purpose
5. robust electrics
6. paper rack
- oil-level indicator (outside) with drainage cock
- option lid seal all around / rear flap waterproof / seal maintenance door to avoid odour
- hydraulic cylinder with pivot bearings
- oil deficiency switch
- compact unit (no hose pipes of valve-pump connection)
- lid lockable
- transformer control (no zero conductor necessary)
- bottom (header) made of wear-resistant steel 450 HBW
- wiper at drawer made of PE dynamically supported
- gas springs for led
- modular system (for easy spare parts handling)
Mobile compactor for hook-lift systems,
Smoothline construction, conical shape,
Control panels safely installed on left and right side,
“wet waste” fully liquid proof,
Header and body welded in one piece,
Feed opening 1400 x 1830 mm,
the compactor is especially designed for compacting of waste with high liquid quote (e.g. kitchen waste, fruits and vegetables)
suitable for BERINGER mobile bin lifter
Primed and coated in RAL colour of your choice.
Standard equipment:
- lid installed front sides
- automatic phase inverter relay
- cleanout door liquid proof
- 80 % fill level signal

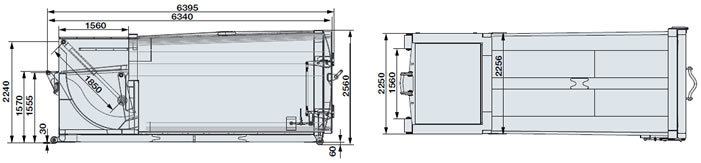

Compactor (bulky waste specs. for hook-lift systems according to DIN 30 730
Smoothline construction conical shape;
With silent pump,
Header with special reinforcements,
Additional rib,
First sidewall plate (left & right) and first bottom plate made of wear resistant steel 450 HBW,
Feed opening 1810 x 2090 mm in front of plunger;
SPS control;
With radial sheets (left & right);
Primed and coated in RAL colour of your choice
Standard equipment:
Pick-up system in the rear with 2 rollers front sides;
Pick up system fold down and hinged at front side;
With paper rack;
With steel wiper in front of ram plate;
80 % fill level signal
1. safety lock at cleanout door
2. control panel – safely installed
3. hook at backside for maneuvering purpose
4. foldable hook at front side for transport purpose
5. robust electrics
6. paper rack
- oil-level indicator (outside) with drainage cock
- option lid seal all around / rear flap waterproof / seal maintenance door to
avoid odour
- hydraulic cylinder with pivot bearings
- oil deficiency switch
- compact unit (no hose pipes of valve-pump connection)
- lid lockable
- transformer control (no zero conductor necessary)
- bottom (header) made of wear-resistant steel 450 HBW
- wiper at drawer made of PE dynamically supported
- gas springs for led
- modular system (for easy spare parts handling)
BERINGER – integrated bin lifter
Suitable for any type of reducer x4
The hydraulic unit of integrated bin lifter is supplied from compactors power unit. The compction cycle is not interrupted by operating the bin lifter.
Our standard integrated bin lifter are suitable for bins 80 l up to 110 l. The integrated bin lifter is suitable for trunnions or comb bar.
Of cause we also offer customized solutions for bigger bins.
BERINGER – integrated bin lifter
Suitable for any type of reducer x5 and x6
The hydraulic unit of integrated bin lifter is supplied from compactors power unit. The compction cycle is not interrupted by operating the bin lifter.
Our standard integrated bin lifter are suitable for bins 80 l up to 110 l. The integrated bin lifter is suitable for trunnions or comb bar.
Of cause we also offer customized solutions for bigger bins.
Each BERINGER reducer is equipped with a lot of standard equippment.- in the following we would like to show you what is possible to customize your compactor for your needs:
1. Remote control with 3 m cable (different cable lengthes available)
11. control panel
12 paper racks
different lid options for filling from ramp or ground
with Hydro-power unit, customized for bins from 80 up to 1100 l (excemption: 660 l min. bolt height: 970 mm) or customized for individual bins.
